How to Use a Multimeter to Test Music Gear and Accessories

Why Every Musician Needs a Multimeter

Whether you're a guitarist troubleshooting a faulty cable, a synth enthusiast diagnosing power issues, or a studio engineer maintaining your equipment, a multimeter is an essential diagnostic tool. This simple device can save you time and money by helping you identify problems before they become expensive repairs.

What is a Multimeter?

A multimeter is a handheld device that measures electrical properties including voltage, current, and resistance. Digital multimeters (DMMs) are affordable, easy to use, and perfect for testing music gear. We stock the Smart Digital Multimeter Tester Mercury MTS01 — a reliable and easy-to-use model ideal for musicians.

Essential Tests for Music Gear

1. Testing Instrument Cables

Faulty cables are one of the most common issues musicians face. Browse our range of guitar cables and guitar effects pedal cables & adaptors. Here's how to test them:

• Set your multimeter to continuity mode (often indicated by a sound wave symbol)
• Touch one probe to the tip of one connector and the other probe to the tip of the opposite connector
• A working cable will beep or show zero resistance
• Test the sleeve (ground) connection the same way
• If there's no beep or infinite resistance, the cable is broken

2. Checking Power Supplies

Power supply issues can damage expensive equipment. Always verify voltage before connecting your guitar effects pedals:

• Set the multimeter to DC voltage (DCV) for most pedals and gear
• Check the power supply specifications (usually 9V, 12V, or 18V)
• Touch the red probe to the centre pin and black probe to the outer barrel
• Verify the voltage matches the specification (within 0.5V is acceptable)
• Check polarity - most pedals use centre-negative configuration

3. Testing Guitar Pickups

Pickups can fail or develop issues over time. Browse our electric guitar pickups and acoustic guitar pickups. Here's how to test them:

• Set your multimeter to resistance (Ω)
• Touch probes to the pickup's hot and ground wires
• Single-coil pickups typically read 5-10kΩ
• Humbuckers typically read 7-16kΩ
• Infinite resistance means the pickup is broken
• Very low resistance (under 1kΩ) suggests a short circuit

4. Checking Batteries

Don't let dead batteries ruin your performance:

• Set to DC voltage
• Touch red probe to positive, black to negative
• A fresh 9V battery should read 9.3-9.6V
• Replace when it drops below 8V
• Active pickups and pedals perform poorly with weak batteries

5. Testing Potentiometers (Pots)

Scratchy or non-functional volume and tone controls can often be diagnosed:

• Set to resistance mode
• Measure across the two outer lugs for total resistance (usually 250kΩ or 500kΩ for guitars)
• Measure between centre lug and each outer lug while turning the pot
• Resistance should change smoothly without jumps or dead spots

Safety Tips

Never test equipment while it's powered on and connected to mains voltage unless you're experienced with electrical work. For tube amps and mains-powered equipment, consult a qualified technician. Multimeters are perfect for low-voltage DC applications like pedals, cables, and instrument electronics.

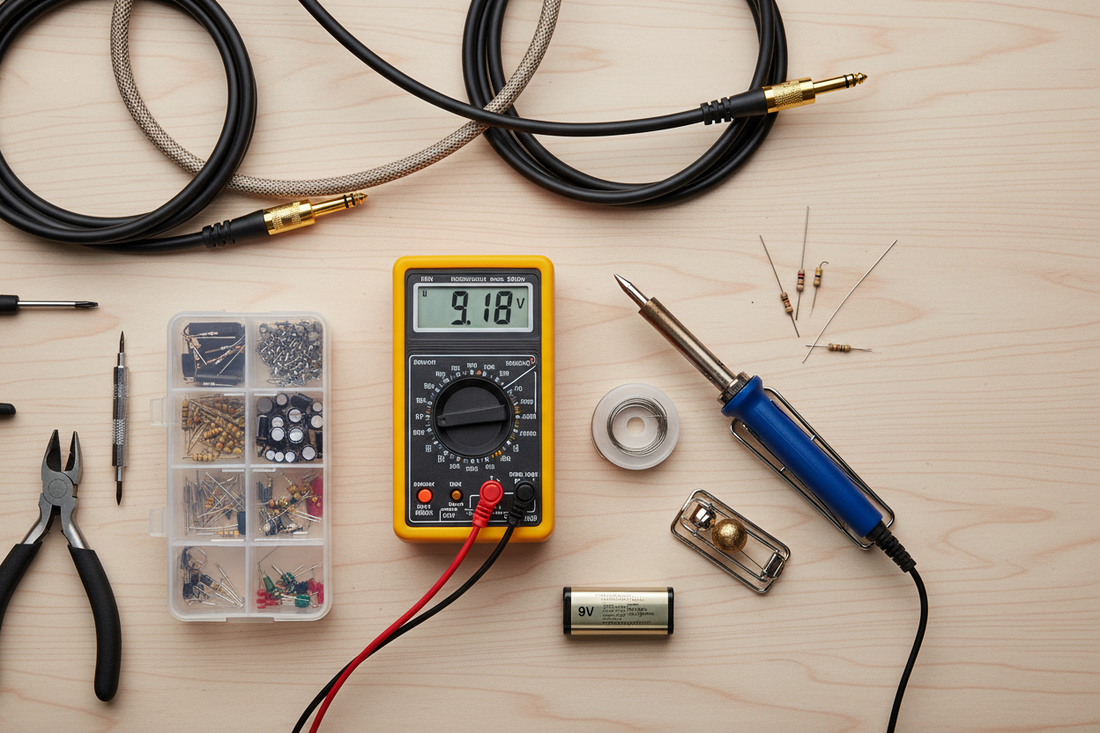

Building Your Toolkit

A basic multimeter is an invaluable addition to any musician's toolkit. Combined with a soldering iron, spare cables, and basic components, you can handle most common repairs and maintenance tasks yourself. This not only saves money but also gives you a deeper understanding of your instruments and gear.

Conclusion

Learning to use a multimeter empowers you to diagnose and fix common issues with your music gear quickly and confidently. Whether you're on stage, in the studio, or practicing at home, this simple tool can be the difference between a quick fix and a costly repair bill. Start with these basic tests, and you'll soon wonder how you ever managed without one.
