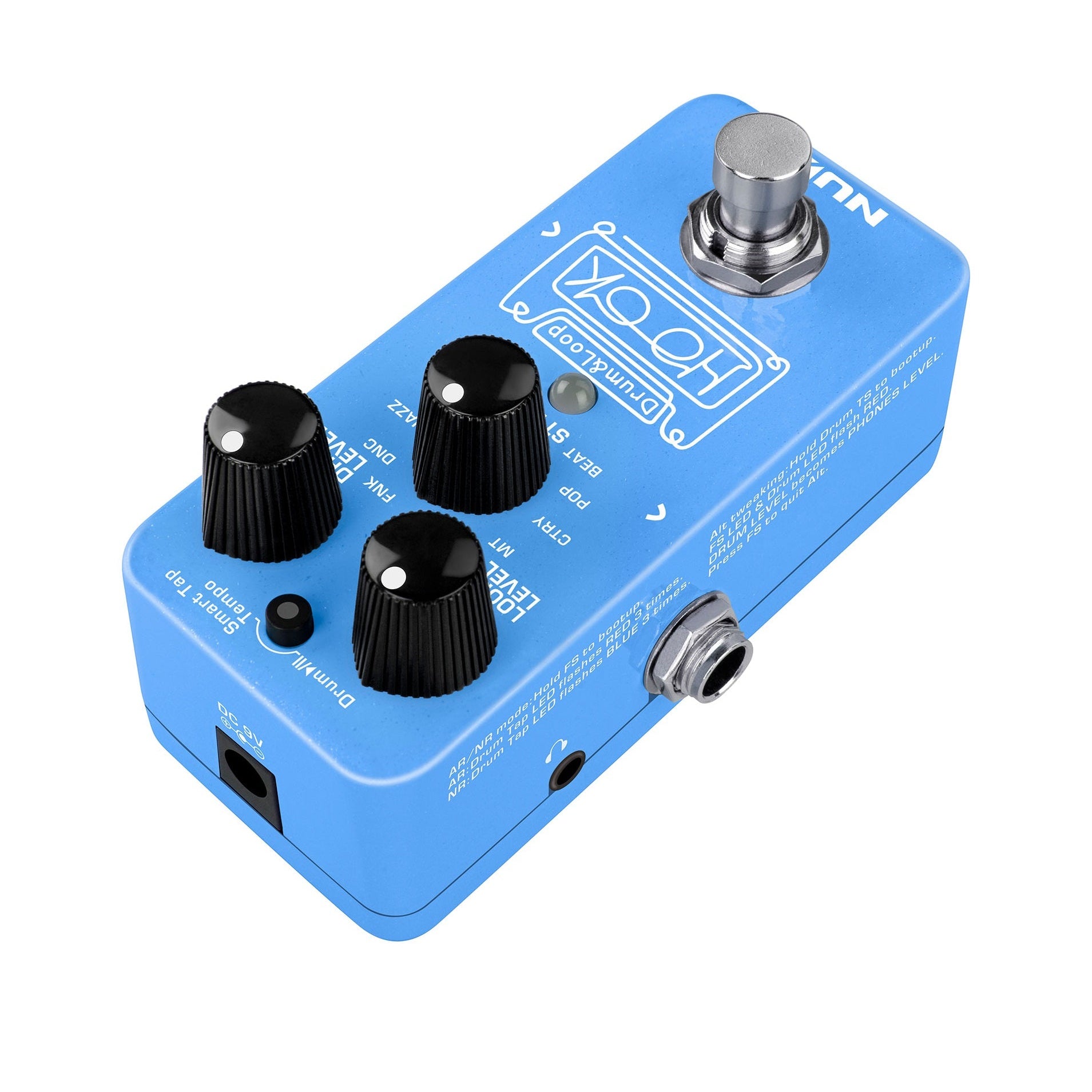

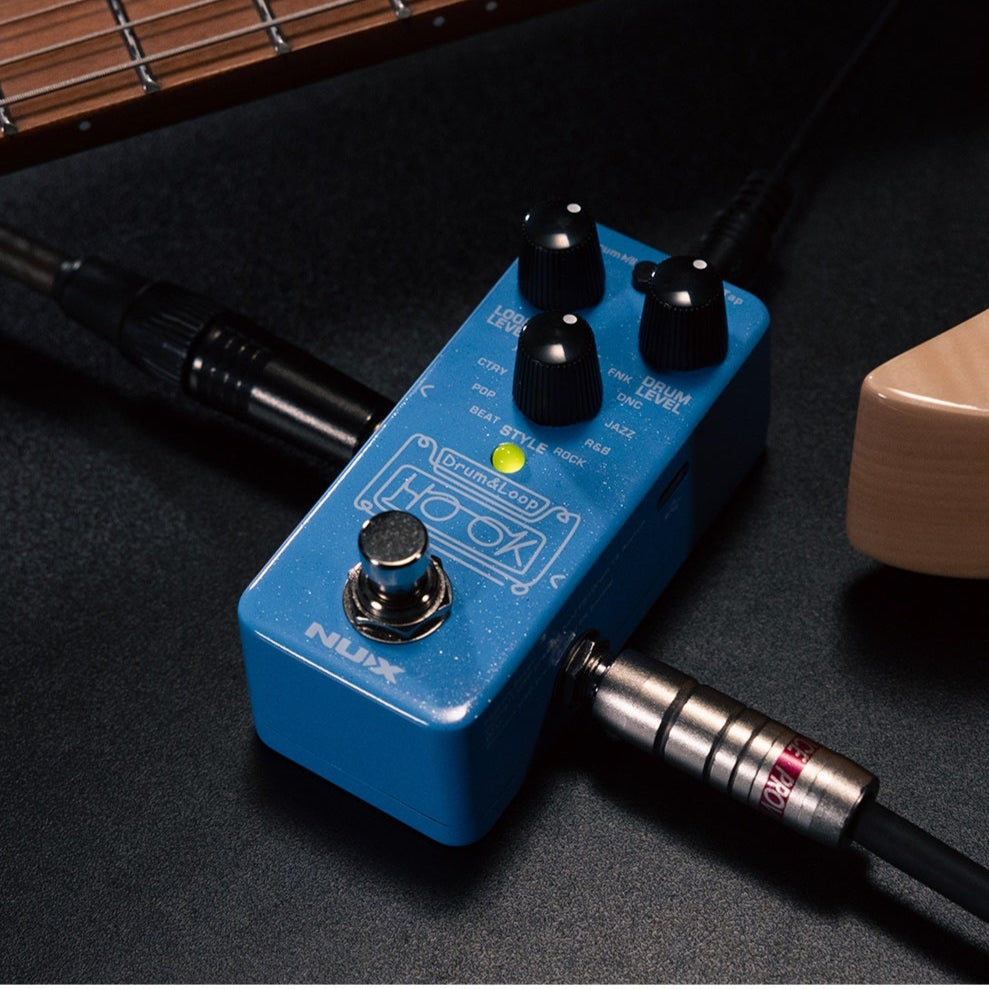

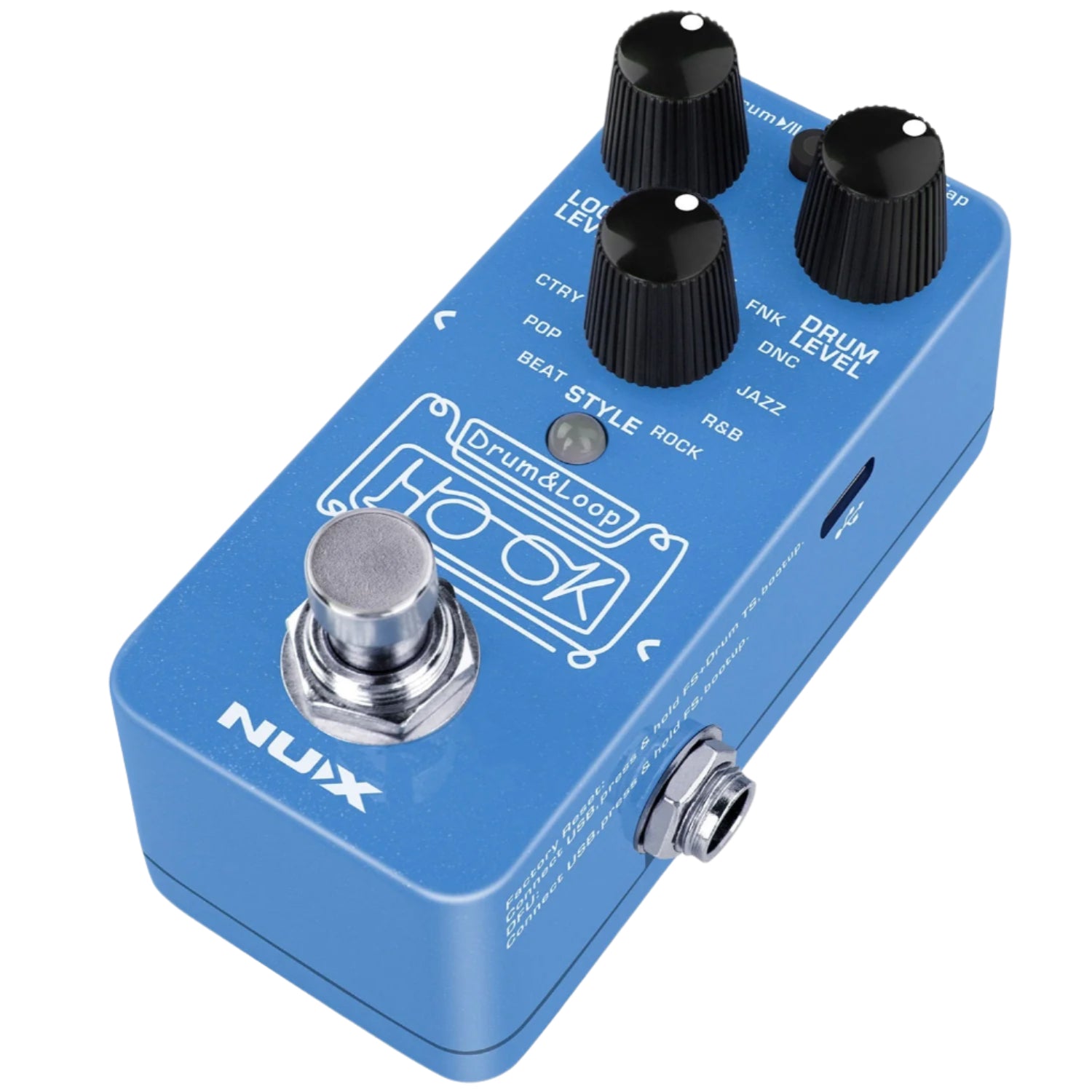

Nu-X Hook Drum & Loop Guitar Effects Pedal NDL-3

This is a combined drum machine and phrase looper in a single miniature pedal format.

Disguised by it's tiny form factor, Hook is a complete practice or accompaniment tool for a solo guitar player who needs intuitive features with simplicity of use.

Supplied by a Nu-X authorised dealer.

Guidance:

• The drum section is controlled by the play/pause button which doubles as a Smart Tap Tempo trigger.

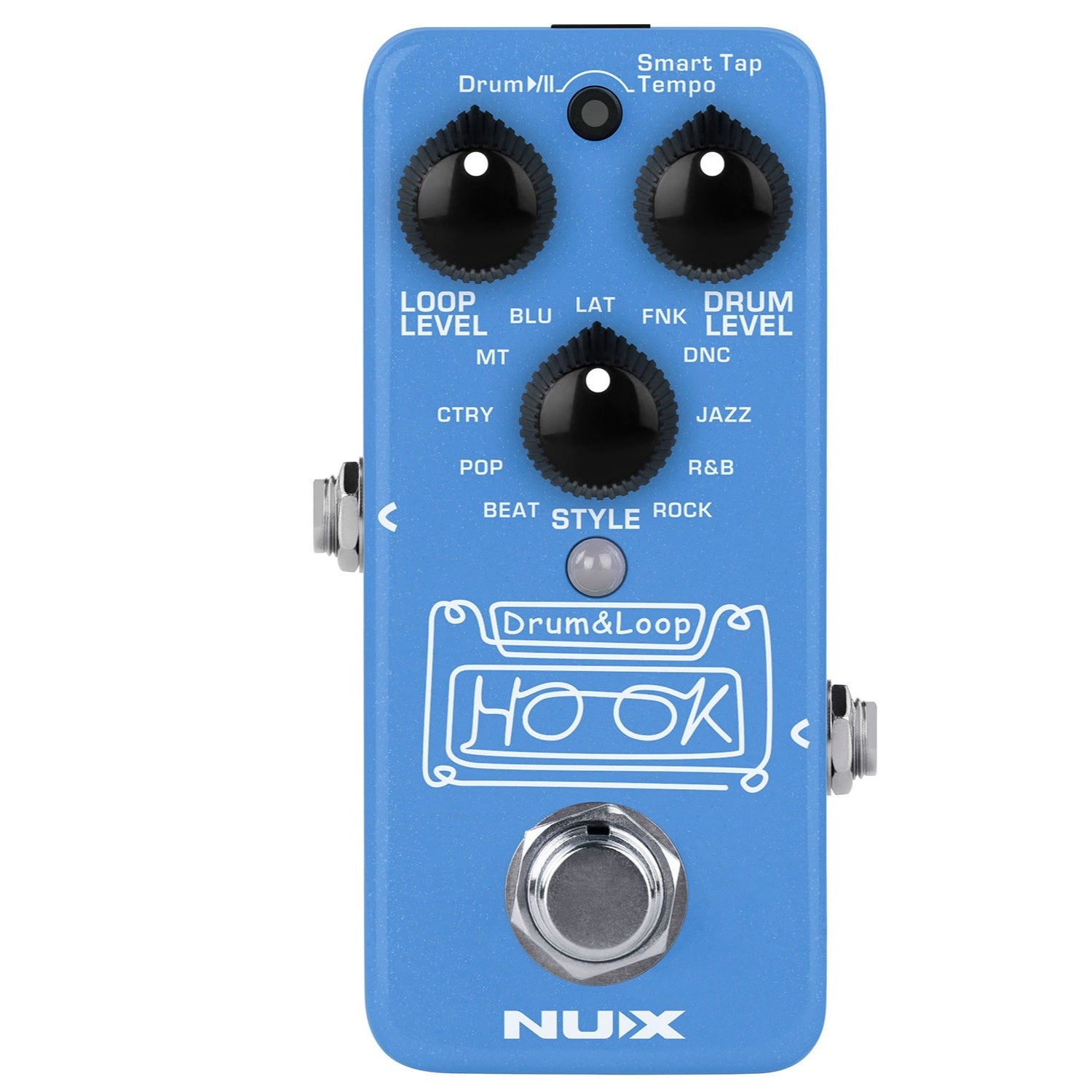

• 11 individual rhythm styles can be selected from to cover a vast range of music genres with output governed by an independent Drum Level control.
• The inbuilt 24-bit phrase looper has up to 6 minutes recording time with unlimited overdubs.
• The current tempo is indicated by the integral LED within the Smart Tap Tempo trigger.
• The Looper recording is activated by tapping the footswitch, tapping again begins playback and tapping again begins overdubbing.
• Holding the footswitch will undo overdubs in sequence or erase the loop when playback is stopped.

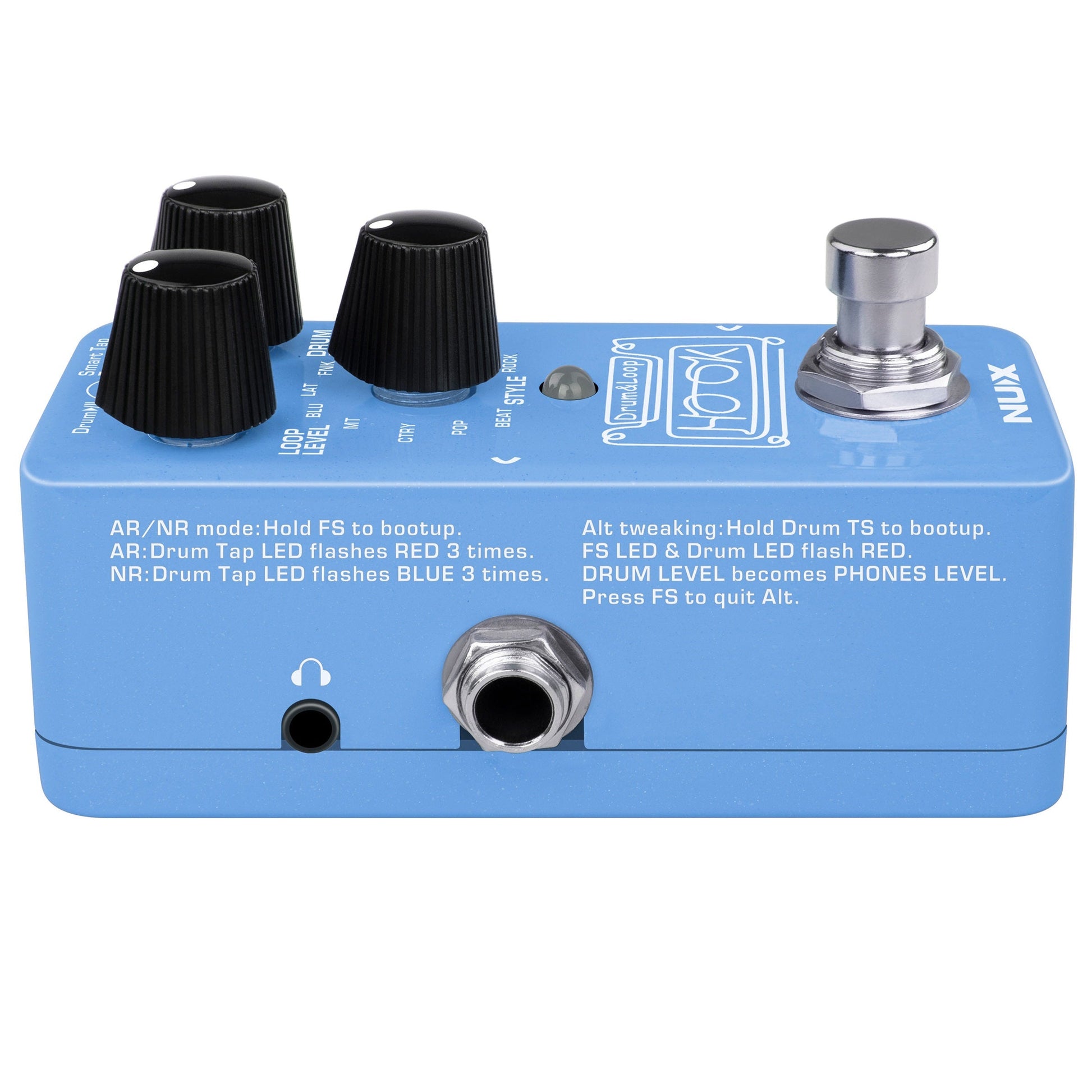

• A choice of two recording modes can be set, with NR mode for normal recording, or AR mode, which will only begin recording when a guitar note is played.
• Adding to the smart tap tempo operation, the Hook pedal can detect the rhythm of the guitar phrase and set the drum tempo to match it.
• The guitar loop also has its own level control to balance with the drum track.
• In addition to guitar input and mixed output jacks, there is a headphones minijack for silent practice.
• The last remaining connector is a type-C USB for firmware updates and even for saving and loading the onboard loop recording as a WAV file to a PC or mac computer.

Specification:

• Smart tap and auto-detect tempo
• 11 different drum styles
• Up to 6 minutes loop recording
• USB firmware and loop file management
• Headphones output

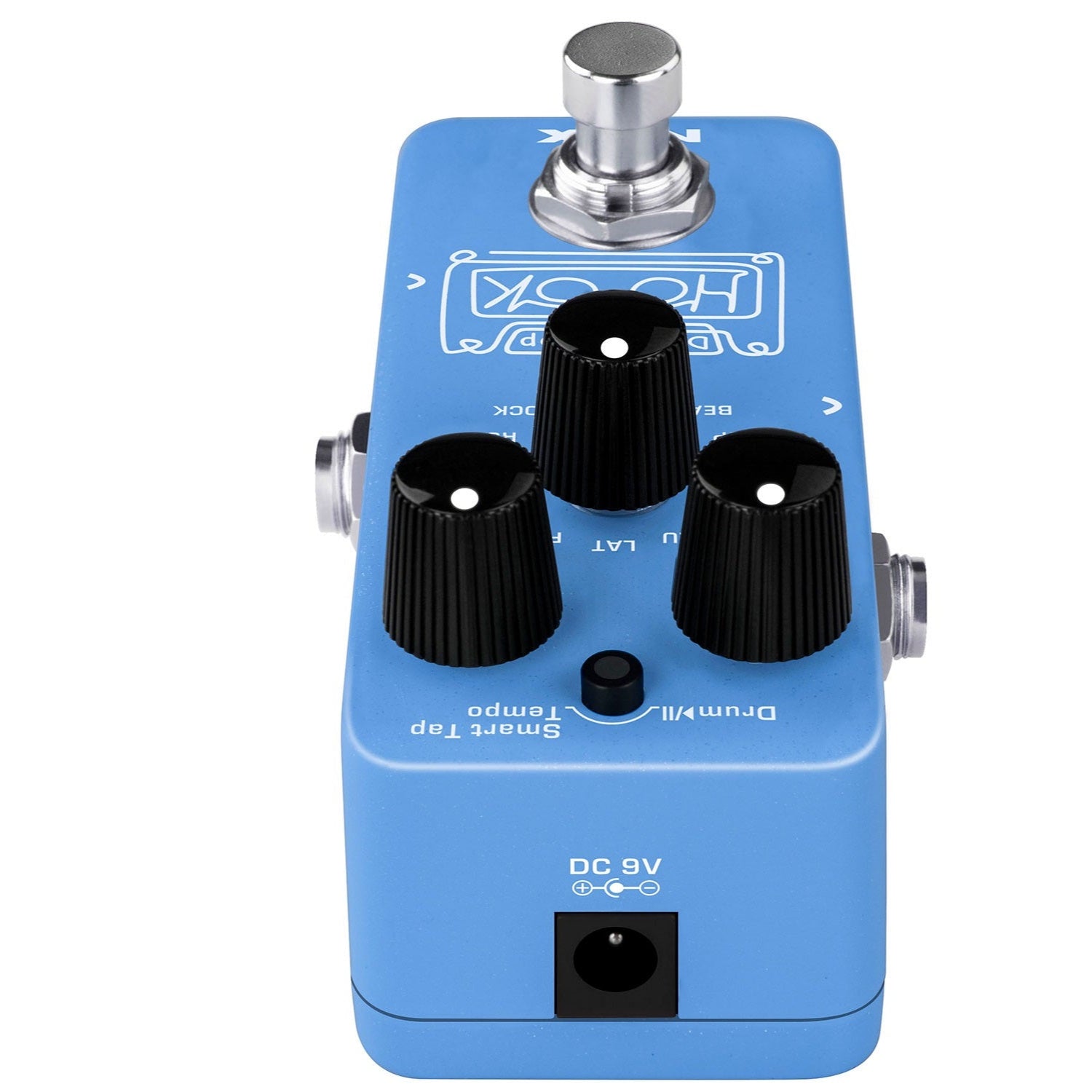

• Power supply9Vdc (centre-negative power adaptor required)
• Input impedance1M Ohms
• Output impedance10k Ohms (headphones output: 10 Ohms)
• Sampling format48kHz, 24-bit
• Current consumption<100mA
• Dynamic range103dB
• Dimensions94 x 53 x 51mm
• Weight 175g
